    BED HEAD PANEL 9060 SERIES :

    Medisystems Bed-Head Panels are fully pre-fabricated, elegant, aluminium panels designed for organized convergence of:

    • Electrical Power
    • Illumination
    • Communications
    • Biosignals
    • Data
    • Medical Gas
    • Other Optional Utilities e.g. Examination lamps, B.P. Instrument, Medical Rail & Medical Rail mounted accessories.

    Flexible configurations in horizontally or vertically oriented panels are available in a choice of colours, for ICU's, Patient Rooms, General Wards or Examination Rooms. Accessories include stainless steel medical rails in international dimensions, rail mounted accessories like I-V poles, infusion pump stack holders, utility baskets, examination lamps, monitor stands and patient–bed lamps.
    -----------------------------------------------------------------------------------------------------------------------------------------------------------------

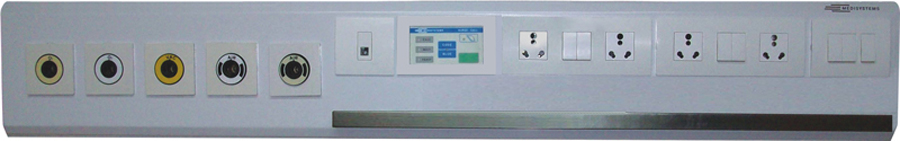

    MODEL 9060A, ICU BED-HEAD PANEL :


    Wall mounted, Mains Operated Bed-Head Panel for use on ICU / MICU / SICU beds, Pre / Post-Op Recovery beds & Resuscitation beds.

    • Dimensions: 1800 mm L x 250 mm W x 65 mm H





    -----------------------------------------------------------------------------------------------------------------------------------------------------------------

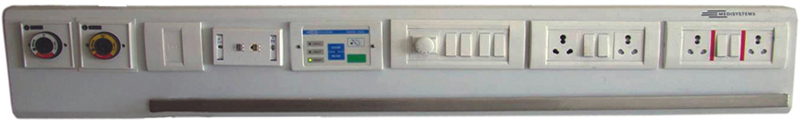

    MODEL 9060B, ROOM BED-HEAD PANEL :


    Wall mounted, Mains Operated Bed-Head Panel for use on patient beds in Private and Deluxe Wards.

    • Dimensions: 1400 mm L x 250 mm W x 65 mm H





    -----------------------------------------------------------------------------------------------------------------------------------------------------------------

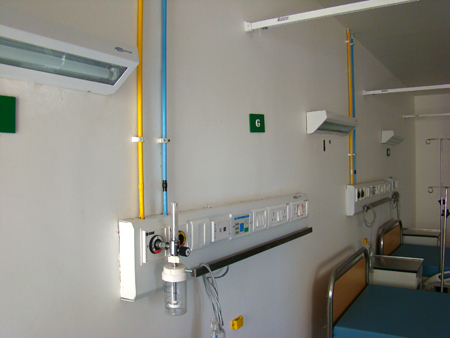

    MODEL 9060C, WARD BED-HEAD PANEL :







    Wall mounted, Mains operated Bed-Head Panel for use on General Ward beds, light duty day care & ambulatory patient beds and examination / consulting room beds.

    • Dimensions: 880 mm L x 250 mm W x 65 mm H
    -----------------------------------------------------------------------------------------------------------------------------------------------------------------

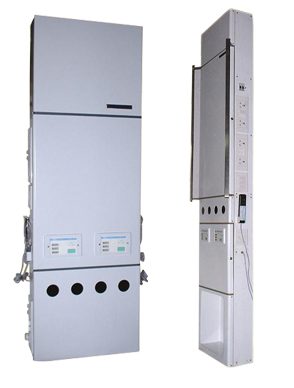

    MODEL 9060V, VERTICAL BED-HEAD PANEL :

    • Wall Mounted, Mains Operated Bed-Head Panel for use on ICU, Recovery & Patient Room Beds.

    • Designed to be placed in the center between two beds in semi-private rooms.

    • Electrical utilities are mounted on either side of the panel, one set for each bed.

    • Dimensions may be adjusted to accommodate concealed conduits, gas lines and gas terminals.

    • Panel Height may be adjusted for architectural & décor considerations.



    -----------------------------------------------------------------------------------------------------------------------------------------------------------------

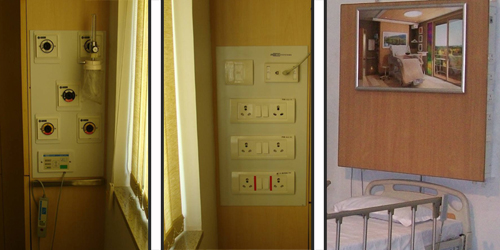

    Customised Bed Head Panel Model 9060 X :


    Wall Mounted Mains Operated Bed Head Panel can be customised in dimensions for use behind windows, corners or designed to hospital architecture, interiors or decor.
